Kingsbury Front Opening Letterbox Rear Retrievel Postbox

An ornate front access letterbox. The front access Kingsbury
Your mail is posted through the front flap and retrieved from the front lockable access door.

Designed for:

surface mounting or fitting into brick or stone walls
fitted onto or through a wooden fence
fitting into gates & railings
mounting on the surface or fitting into brick piers.

When built into a cavity wall or pier, the mail is securely stored within the cavity area allowing the front casting to fit flush against the brickwork or rendering.

standard size has a generous 25 litre capacity
case depth can be extended up to 900mm
the front door can be customised with a house name or number
supplied complete with 2 keys

Front view of the LS03 mailbox shown fitted into railings using the optional railing fixing kit

Sectional view of the LS03 postbox through railings showing operation

Rear view of letterbox shown fitted in railings with the optional railing fixing kit

The LS03 mail box shown fitted inside a brick wall

The LS03 postbox shown surface mounted on a brick wall

LS03 letterbox fitted into a brick pier

Rear view of the LS03 postbox shown fitted through a fence with the optional fence fixing kit

Rear view of post box shown fitted completely through a double brick wall

Sectional view through a brick pier showing the operation of the LS03 mailbox

Letterbox shown fitted through a fence

LS03 mailbox shown surface mounted on a fence

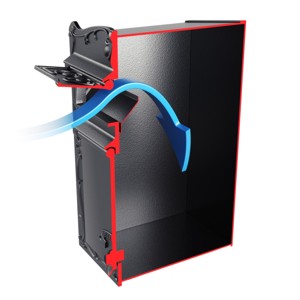

Sectional view of mailbox fitted through a cavity wall showing operation

Sectional view through a fence showing operation of post box

Rear view of the LS03 mailbox shown fitted through a single brick wall

Rear view of the letterbox shown fitted completely through a brick pier

Sectional view showing the optional Restrictor Plate operation when fitted to the letterbox

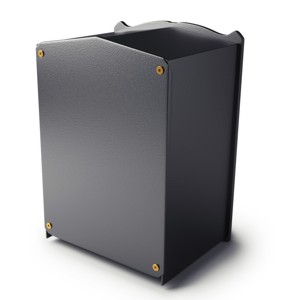

The LS03 post box with a solid back of for attachment to gates, railings, fences or completely through a brick wall or pier

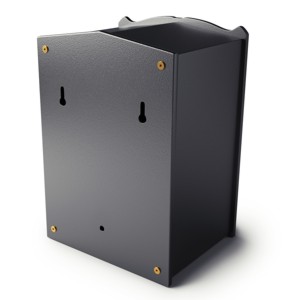

The LS03 letterbox, key holed in the back of the postbox for mounting on the surface of a wall or fence

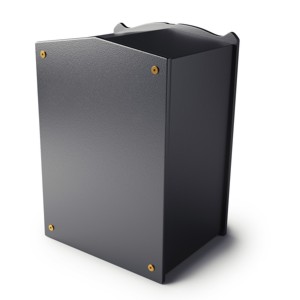

Mailbox with flush back for mounting into a wall or brick pier.

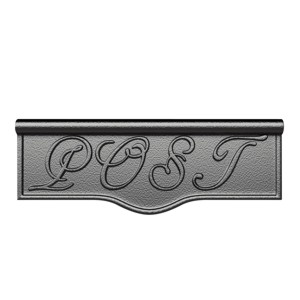

Script post flap for Kingsbury letterbox (Standard on this Model)

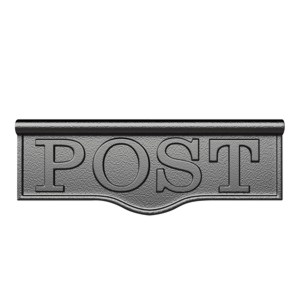

Clarendon post flap (optional replacement for Script post flap)

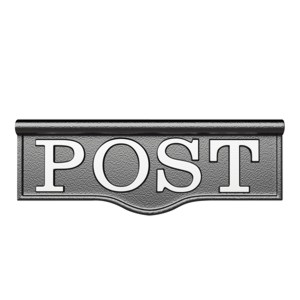

Highlighted Clarendon post flap, available in a choice of colours (optional replacement for Script post flap)

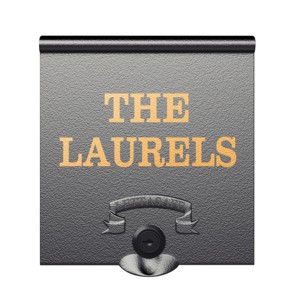

Optional house name on front access door.

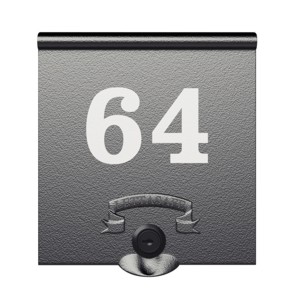

Optional house number on front access door.

Optional Railing Fixing Kit components. (Includes all fixings)

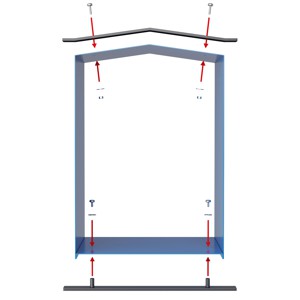

Optional Railing Fixing Kit components shown fitted into position in metal railings.

Shipping weight:

8kg for standard size model.

Overal dimensions:

295mm wide, 425mm high, 266mm deep (front to back, this can be extended up to 900mm)

Components:

The front and rear castings including the door and flap are cast from pure aluminium in English foundries, whilst the main body is made from sturdy electro zinc coated steel. To ensure it's long lasting appeal, these components are thoroughly cleaned and primed before being phosphate treated and coated in a durable top quality low bake enamel in a choice of colours. All additional components (excluding lock) used are made from solid brass or stainless steel and assembled in England.

LS03 & LS07 Fitting instructions

	Using a spirit level draw a horizontal line on the wall and mark the top two holes 180mm apart. Drill the holes 8mm diameter x 50mm deep
	Insert the plastic wall plugs then fit the top two screws leaving them protruding around 8mm
	Mount the Lettasafe box on the two screws using the keyhole slots provided Open the door and mark the bottom hole Lift the letterbox back off the top screws
	Drill and fit the bottom wall plug Refit the box on the top screw Tighten the top screws and fit the bottom screw


	Front retrieval with holes
