LS16 Oakley letter chute
The Oakley letter chute is a neat and robust solution for mail delivery through a brick wall.
- Models available for walls depths from 215mm to 485mm thick

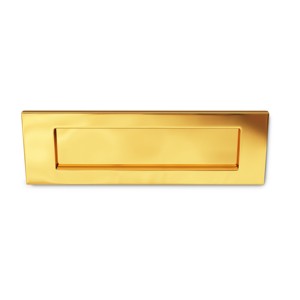

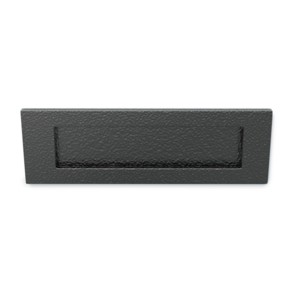

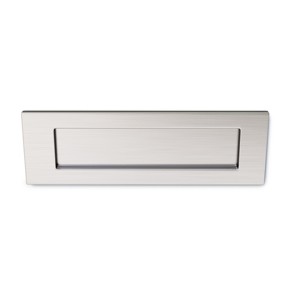

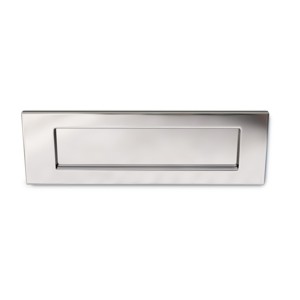

- Choice of polished and brushed chrome, textured black or polished brass letter plates
- Available in black or white textured finish
- Simple, neat solution for securely transferring mail through a brick wall or pier
- Optional waterproof collection box available
 |
 |
 |
 |
| Standard model (350mm) | Extended model (485mm) | Fitted in a double brick wall | Optional collection box |
The LS16 Oakley is an adjustable letter chute system designed for wall or brick pier depths from 215mm to 485mm. The letter chute system is an ideal solution for transferring mail though a brick wall or pier. The mail can be transferred to your own container or our optional collection box. The optional collection box is lockable and supplied with 2 keys, totally waterproof and has been specially designed for the Oakley.
Models for brick wall or pier depths from 215mm to 485mm
The Oakley letter chute system is available in 2 models, both are fully adjustable, the standard model is suitable for fitting into brick walls or piers walls from 215mm to 350mm in depth, the extended model is designed for brick walls or piers from 350mm to 485mm deep. The two halves of the chute assembly concertina together to the correct thickness of your brick wall or pier. There are 2 clamping bolts which neatly hold the sections in place.
Optional collection box.
 |
 |
An optional waterproof collection box is available for both size models, the collection box is lockable and is supplied with 2 keys. There is a choice of 3 depths available (the distance from the front to the back).
The widths of all models is 295mm and the height is 425mm. The collection boxes are available in a choice of black or white textured finish. |
| Front view | Rear view |
LS16 Post Chute Dimensions
The Oakley through the wall chute is available in 2 models, the Standard model is adjustable from 215mm to 350mm. The Extended model will accommodate wall thicknesses up to 485mm.
Shown below are the dimensions of the LS16 through wall chute system, all dimensions are in mm.
 |
These are the dimensions of the post flap supplied with the LS16. This post flap is shown in brass but is also available in textured black and polished or brushed chrome.
|
 |
Shown below are the dimensions of the rear opening of the LS16 Chute assembly.
|
 |
The dimensions below are the dimensions of the LS16 Standard chute assembly, shown fitted into a standard double wall.
The extended model will accommodate brick wall or pier thicknesses up to 485mm.
|
 |
These are the dimensions of the LS16 Standard chute assembly fitted into a cavity wall. Showing the wall depth and chute drop.
The Extended model will accommodate wall thicknesses up to 485mm
|
 |
These are the dimensions of the Inner (front) and outer (rear) chutes. The assemblies slide together for fitting and adjustment.
|
LS16 Installation and Assembly Instructions
|
The LS16 Oakley through the wall letter chute is designed to be installed into brick walls or brick piers from 215mm thick up to a depth of 485mm. The letterbox can be fitted into an existing brick wall or installed as the wall is being built. Shown to the right is an illustration of the standard postal chute assembly at a depth of 280mm fitted in a cavity brick wall. Far right is the Extended model at it's maximum of 485mm Click here for installation instructions into an existing brick wall. Click here for instructions to install the letter chute into a wall as it it is being built.
|
Cavity wall section |
Optional Collection Box |
 |
 |
