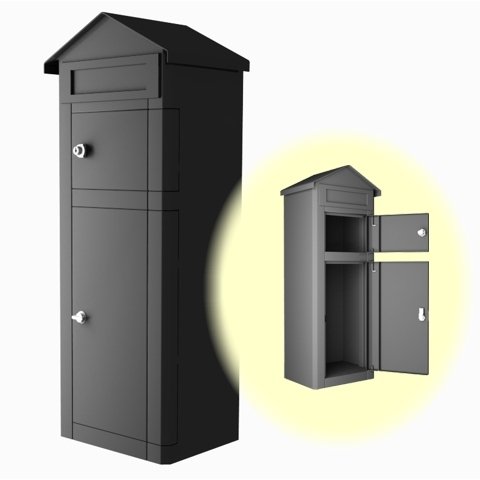

LS30 Combination mail & parcel box
A secure combination mailbox incorporating a separate large compartment for parcel deliveries. Letters and small jiffy bags etc. are delivered through the conventional post flap and are contained securely in the top lockable section of the combination box. For large parcels, the postman or delivery driver will open the bottom door and place your parcel inside, once the door is re-closed it automatically locks with our unique and secure locking mechanism keeping your parcel safe until you get home. Our innovative system allows for large parcels to be delivered securely whilst you are out.
- Great solutuion for secure unattended mail and parcel deliveries
- Manufactured from solid 14 gauge steel.
- Conventional mail is securely stored in the top lockable section
- Parcel door automatically locks securely after packages are delivered
- Large 136 litre capacity with wide opening doors
- Can accomodate a single parcel up to 250mm x 258mm x 510mm
- Supplied with 2 keys
 |  |  |  |
| Front view | Doors open | Section view | Doors fully open |
Secure unattended deliveries anytime
The Vincent combination post and parcel box incorporates a totally unique locking mechanism which is secure and easy to operate. The owner simply shuts the parcel door and sets the lock from the top lockable compartment. The parcel compartment door will open for a delivery but as soon as the door is closed the locking mechanism is fully activated and the parcel door cannot be opened again, leaving you package safely stored. The parcel door can only be opened and reset from within the lockable top section which is only accessable with your keys. This is a great solution to having parcels delivered and stored in a secure location whilst you are out.
Ease of use
For easy delivery and retrieval of your packages, the doors on the parcel and letterbox openings open a full 225 degrees giving full unrestricted access to the compartments. The locking mechanism is secure and simple to use (click the Instructions tab for more details).
Security without compromise
The choice of materials has not been compromised with the Vincent combination post and parcel box. It is manufactured from robust 14 gauge steel plate (almost twice as thick as other pacel boxes) and weighs a hefty 22kg. For additional security the doors have been designed without open edges which could otherwise be forced open. The Vincent combination box can be securely fitted to a brick wall or free standing in your grounds (using the optional free standing adapter).
LS30 Letter and Parcel box Dimensions
The Vincent parcel box is designed to accommodate a large amount of mail in addition to parcels up to
Shown below are the dimensions of the LS30 combination letter and parcel box, all dimensions are in mm.
 | These are the overall outside dimensions of the Vincent parcel and letterbox. - H = 1000mm, the overall height.
- W = 350mm, this dimension is the width of the Vincent combination box.
- D = 275mm, the depth from front to back (excluding the lock and handle.
|
 | Shown below are the dimensions of the parcel and letterbox openings. - A = 57mm, the height of the letterplate opening.
- B = 233mm, this dimension is the width of the letterplate opening.
- C = 165mm, the height of the mail section opening.
- D = 258mm, this dimension is the width of mail section opening.
- E = 510mm, the height of the parcel box section opening (although parcels up to 560mm high can fit inside)
- F = 258mm, this dimension is the width of the parcel box section opening (although parcels up to 325mm wide can fit inside
|
i»?  | These are the maximum dimensions of a single package which will fit into the LS30 parcel section. - D = 250mm, this is the maximum depth.
- W = 258mm, the maximum width
- H = 510mm, this dimension is the maximum height.
The dimensions shown above are the maximum sizes of one individual parcel. The Vincent can accommodate parcels up to 270mm deep, 325mm wide and 560mm high, providing the other dimensions are not at their maximum. i.e. A parcel 560mm high by 250mm deep and 100mm wide will comfortably fit into the parcel section. |
Unlocking the LS30 Vincent parcel compartment
 | Step 1 Unlock the lock and press the centre button fully in and pull open the top mail section door. The parcel release mechanism is located in the left hand corner of the top mail section as indicated by the arrow |

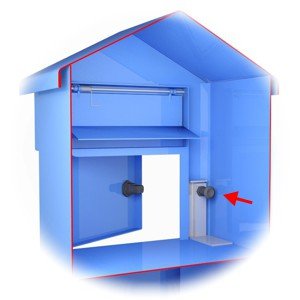

 | Step 2 Pull the black handle towards the back of the parcel box as indicated by the red arrow. |

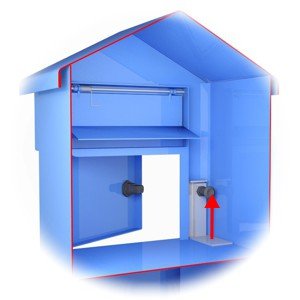

 | Step 3 Keeping the handle pulled out, push the handle upwards about 10mm. The button will now be past it's locating hole and there is no need to keep the button pulled out. Continue to push the handle upwards until it locks into place in the top locating hole. During this process, the parcel door handle will turn fractionally, this is normal. |
 | Step 4 Turn the parcel door handle clockwise until it stops in a vertical position. |
 | Step 5 The parcel box door can now be pulled open. |
Setting the LS30 Vincent parcel box lock to open once
 | Step 1 From within the top mail compartment, ensure the black handle is located in the uppermost position. |
 | Step 2 Close the parcel box door and turn the handle anti-clockwise until it stops in a horizontal position. |
 | Step 3 Pull the black handle towards the back of the parcel box. |

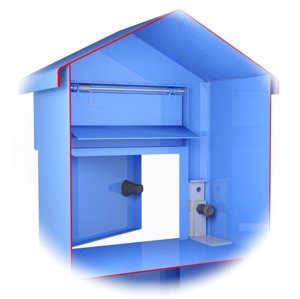

 | Step 4 Allow the black handle to slide down into the primed (lock set) position. |
 | Step 5 Close and lock the top mail box compartment door. The parcel box door is now set and can be opened by the postman or delivery driver. Once the door has been opened and closed again it will lock and will not open until the locking mechanism is released. |
Setting the LS30 Vincent parcel box door to stay unlocked
| Although the Vincent combination mail and parcel box is designed to provide a secure method of delivering parcels whilst the property is left un-attended, there may be occasions when the parcel compartment needs to be accessed several times during your absence for non valuable items. To set the mechanism to allow continued access:- From within the top mail compartment, locate the black handle in the topmost position and lock the top compartment door. The parcel door can now be opened and closed as many times as required. |
